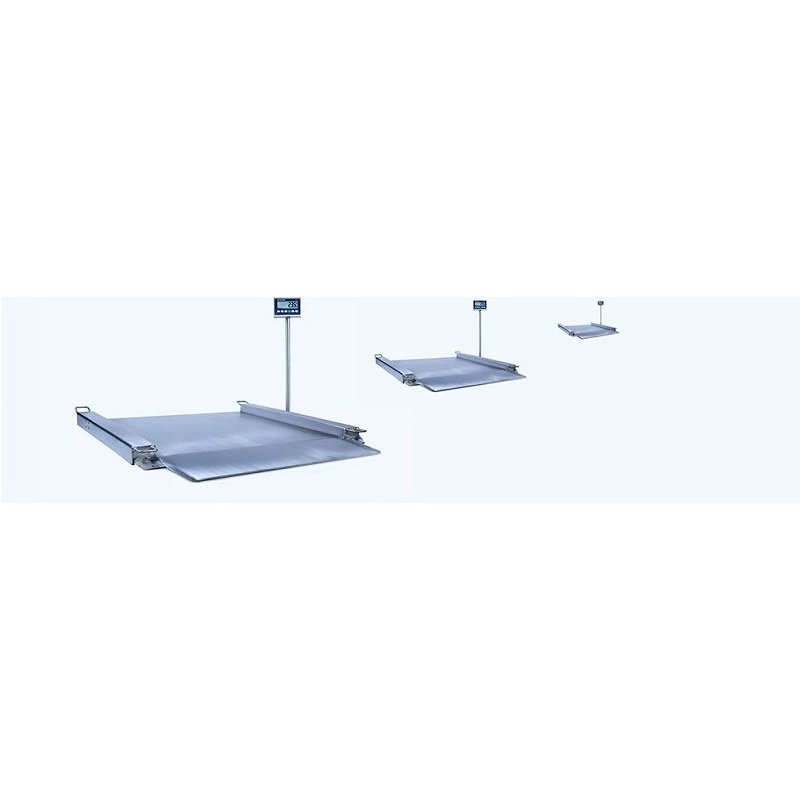

DU-Line Heavy-Duty Floor Scales


FEATURES

FEATURES

Heavy-duty low-profile floor scales

Ruggedness with better weighing accuracy

The DU-Line floor scale combines robust construction and an exceptionally low profile. It is durable enough to provide accurate, reliable weighing while standing up to constant use in industrial environments. The platform’s ultra-low profile simplifies the job of moving loads onto and off the scale. Thanks to new product options and a wide range of accessories, the DU Line can adapt to your demands.

Adjustable feet for better accuracy

The rocker pin automatically aligns in blind-hole load point, concentrating all vertical loads at one point on the load cell. Adjustable feet make it easy to level the scale on uneven floors.

High-accuracy Load Cells

The integrated load cells are both IP68 & IP67 protected making them useful for any kind of harsh and wet conditions. IP68 load cells are hermatically sealed with a welded cover to keep out moisture and dirt.

Wide weighing range available

The DU-Line is available with a weighing range of 600 to 1500kg with a variety of platform sizes available. The platform material can be constructed of stainless and mild steel depending upon application and equipment usage. It can also be connected with terminals, such as the IND570 or ICS series.

Features and Benefits

  • Ultra low profile
    35mm platform height
    Designed for easy loading and unloading
  • Rugged Construction
    Built for heavy-duty use
    Suitable for use in harsh environments
    Stainless steel load plate for protection in corrosive environments
  • Hygienic design
    Stainless steel model meets food and pharma industry requirements
  • Lifting device for efficient cleaning
  • Consistant & repeatable performance
Specifications

Specifications

MOC Housing MS/ SS 304
MOC Load Plate MS/ SS 304
Protection IP67 & IP68 Ideal for Wet & Harsh Environment
Capacity 300/ 600/ 1500kg
Readability 50/ 100/ 200gm
Size 850 x 850/ 1000 x 1000/ 1250 x 1500mm
